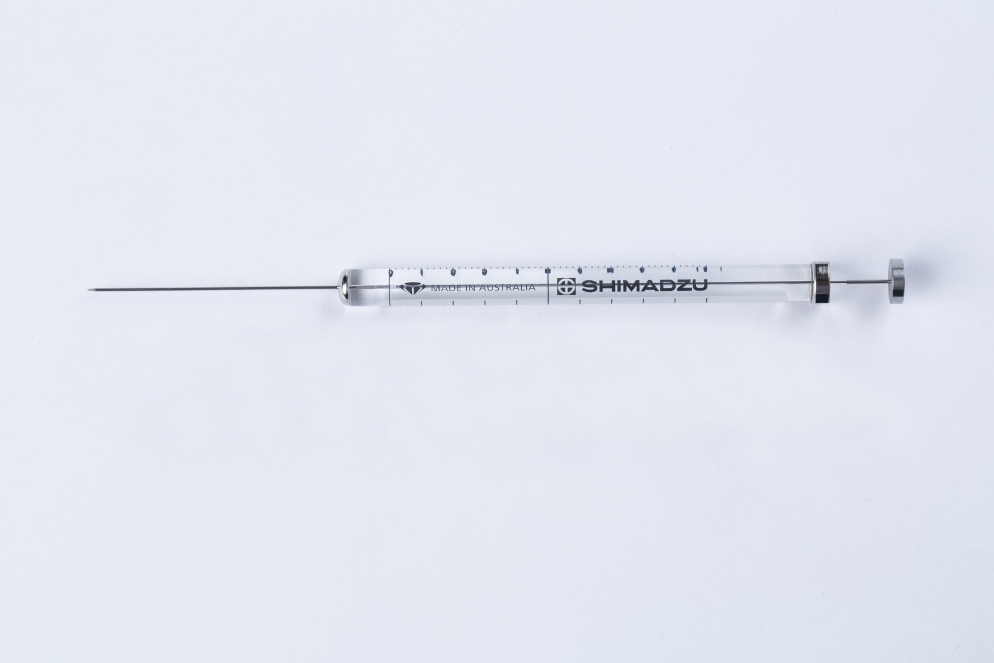

Syringe for AOC-20i/20s and AOC-20i Plus / 20s Plus
Part Number: 221-34618
Type: Fixed Needle Syringe
Needle Tip Style: Cone
PTFE Tipped Plunger: No
Needle Length (mm): 42
Needle Gauge: 23
Needle OD (mm): 0.63
Needle ID (mm): 0.11
Usage: AOC-20
Syringe Volume: 10 μL
Needle Length (): 42
Lead Time: 3 - 5 weeks
| Syringe Volume | PTFE Tipped Plunger |
Needle Length (mm) | Needle Gauge | Needle OD (mm) | Needle Tip | Needle ID (mm) | P/N | Replacement Plunger P/N | Replacement Needle P/N |
|---|---|---|---|---|---|---|---|---|---|
| 5 μL | − | 42 | 23 | 0.63 | Cone | 0.11 | 221-75173 | 221-75173-01 | - |
| 10 μL | √ | 42 | 23 | 0.63 | Cone | 0.11 | 221-74469 | - | - |
| 10 μL | − | 42 | 23 | 0.63 | Cone | 0.11 | 221-34618 | - | - |
| 10 μL | √ | 42 | 23 | 0.63 | Cone | 0.11 | 221-75174 | 221-75174-02 | 221-75174-01 |
| 50 μL | − | 42 | 23 | 0.63 | Cone | 0.11 | 221-45243 | - | - |
| 250 μL | √ | 42 | 23 | 0.63 | Cone | 0.11 | 221-45244 | 221-45244-01 | - |
