2.5MF-AOC5-GT-HS-5/0.47H
Part Number: 221-75179

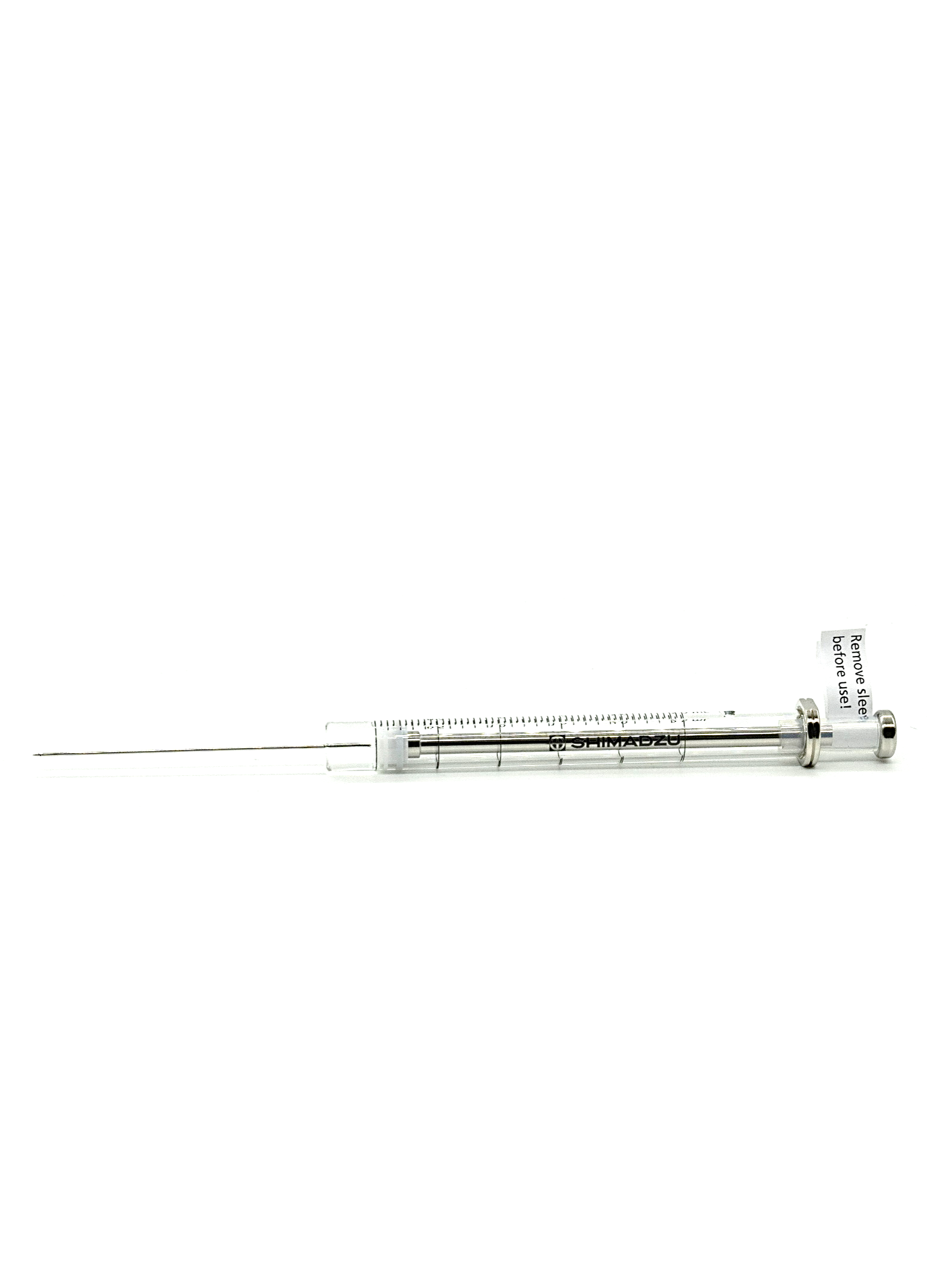

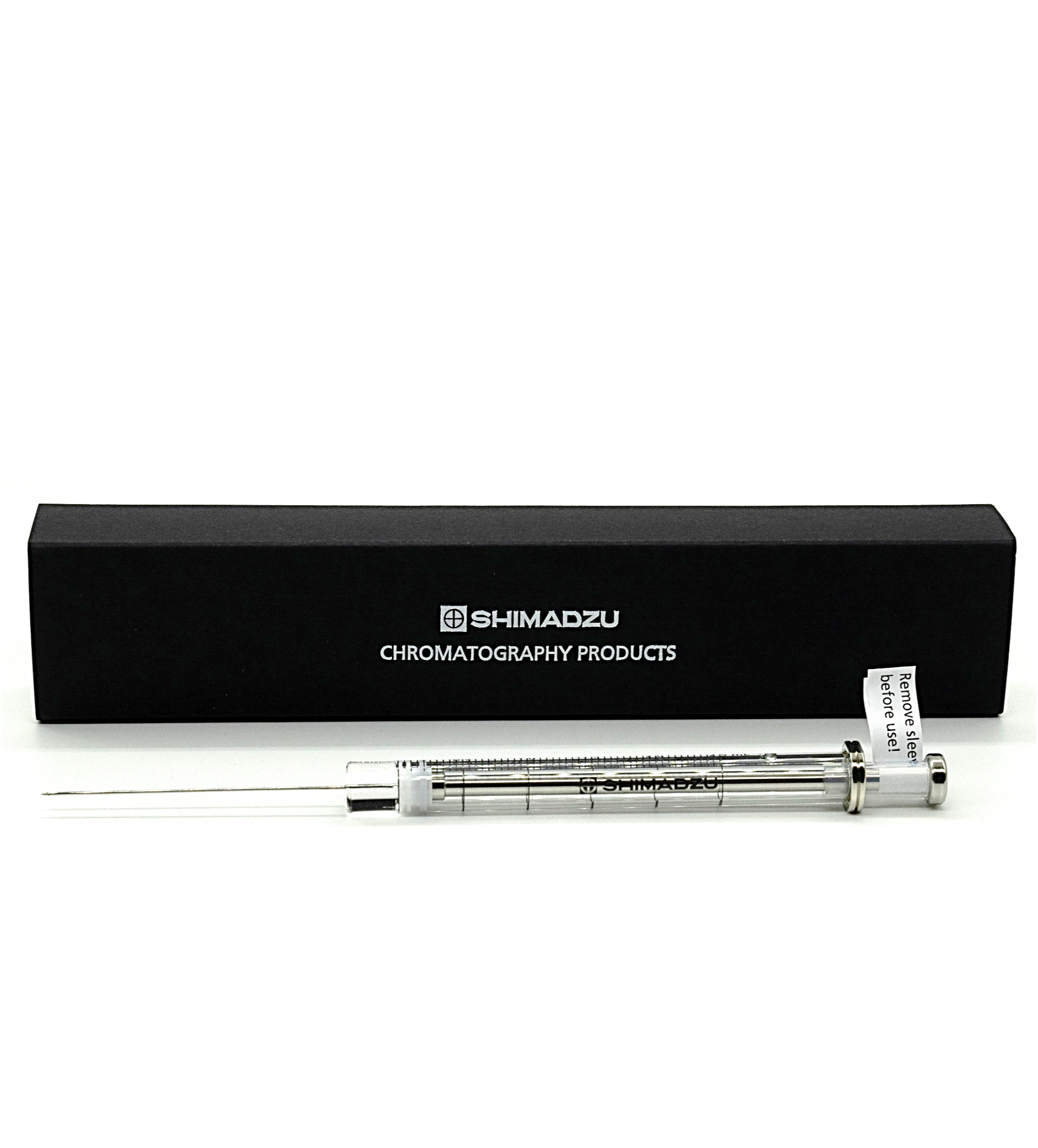

Type: Fixed Needle Syringe
Needle Tip Style: Side Hole Dome
PTFE Tipped Plunger: Yes
Needle Length (mm): 56
Needle Gauge: 26
Needle OD (mm): 0.47
Needle ID (mm): 0.15
Usage: AOC-5000 Plus
Syringe Volume: 2.5 mL
Needle Length (): 56
|
Syringe Volume |
PTFE Tipped Plunger |
Needle Length (mm) |
Needle Gauge |
Needle OD (mm) |
Needle ID (mm) |
Needle Tip |
P/N |
|
10 μL |
− |
50 |
26 |
0.47 |
0.11 |
Cone |
|
|
10 μL |
− |
50 |
23 |
0.63 |
0.11 |
Cone |
|
|
10 μL |
− |
80 |
26 |
0.47 |
0.11 |
Cone |
|
|
10 μL |
− |
80 |
23 |
0.63 |
0.11 |
Cone |
|
|
10 μL |
√ |
50 |
26 |
0.47 |
0.11 |
Cone |
|
|
10 μL |
√ |
50 |
23 |
0.63 |
0.11 |
Cone |
|
|
25 μL |
√ |
50 |
23 |
0.63 |
0.24 |
Cone |
|
|
1 mL |
√ |
56 |
26 |
0.47 |
0.15 |
Side Hole Dome |
|
|
1 mL |
√ |
56 |
23 |
0.63 |
0.15 |
Side Hole Dome |
|
|
2.5 mL |
√ |
56 |
26 |
0.47 |
0.15 |
Side Hole Dome |
|
|
2.5 mL |
√ |
56 |
23 |
0.63 |
0.15 |
Side Hole Dome |
