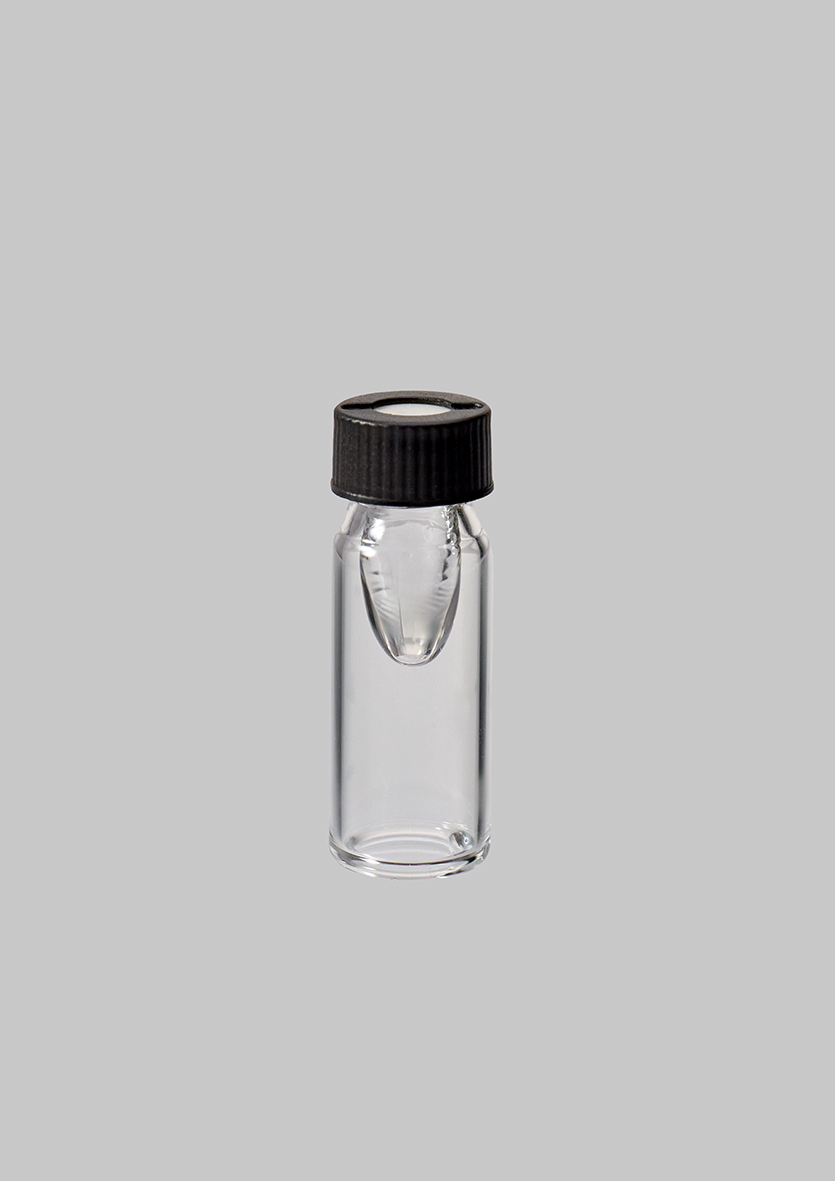

Shim-vial H 0.15 mL clear glass, Cap with PTFE/silicon septum (slitless)
Part Number: 227-34500-11
Type: Certified Vial Kit
Volume: 0.15mL
Vial Size: 32 x 11.6mm
Vial Material: Type 1 borosilicate glass
Colour: Clear
Write On Spot: No
Vial Treatment: Low adsorption of basic compounds
Max. Vol / mL: 0.15
Closure Type: Screw cap (centre hole) with septum
Closure Material: PP
Closure Colour: Black
Closure Size: ND 9
Septa Material: Silicone white/PTFE red
Pre-slit: No
Certification: Adsorption test, GCMS, LCMS
Pack size: 100
Lead Time: 3-5 weeks
Our small-volume vials with their unique shape are made of the same materials and receive the same cleaning treatment as the 1.5 mL vials. They suppress adsorption more than other small-volume inserts by limiting the contact surface between the sample and the container. In addition, the bottom surface of the vial is hollowed out in order to increase thermal conductivity.
- Residual volume: Approx. 10 μL
- When using it, adjust the needle stroke parameter to be 15 mm higher than for the 1.5 mL vials.
- For example; Shimadzu SIL-40 series: 32 mm or less
