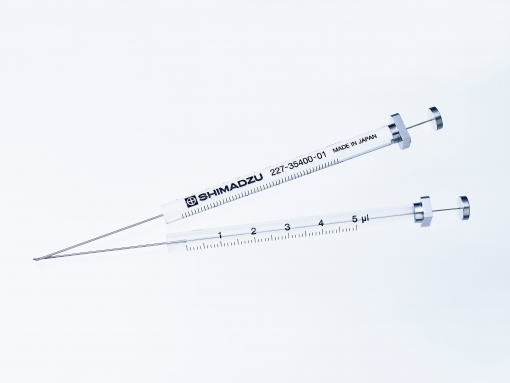

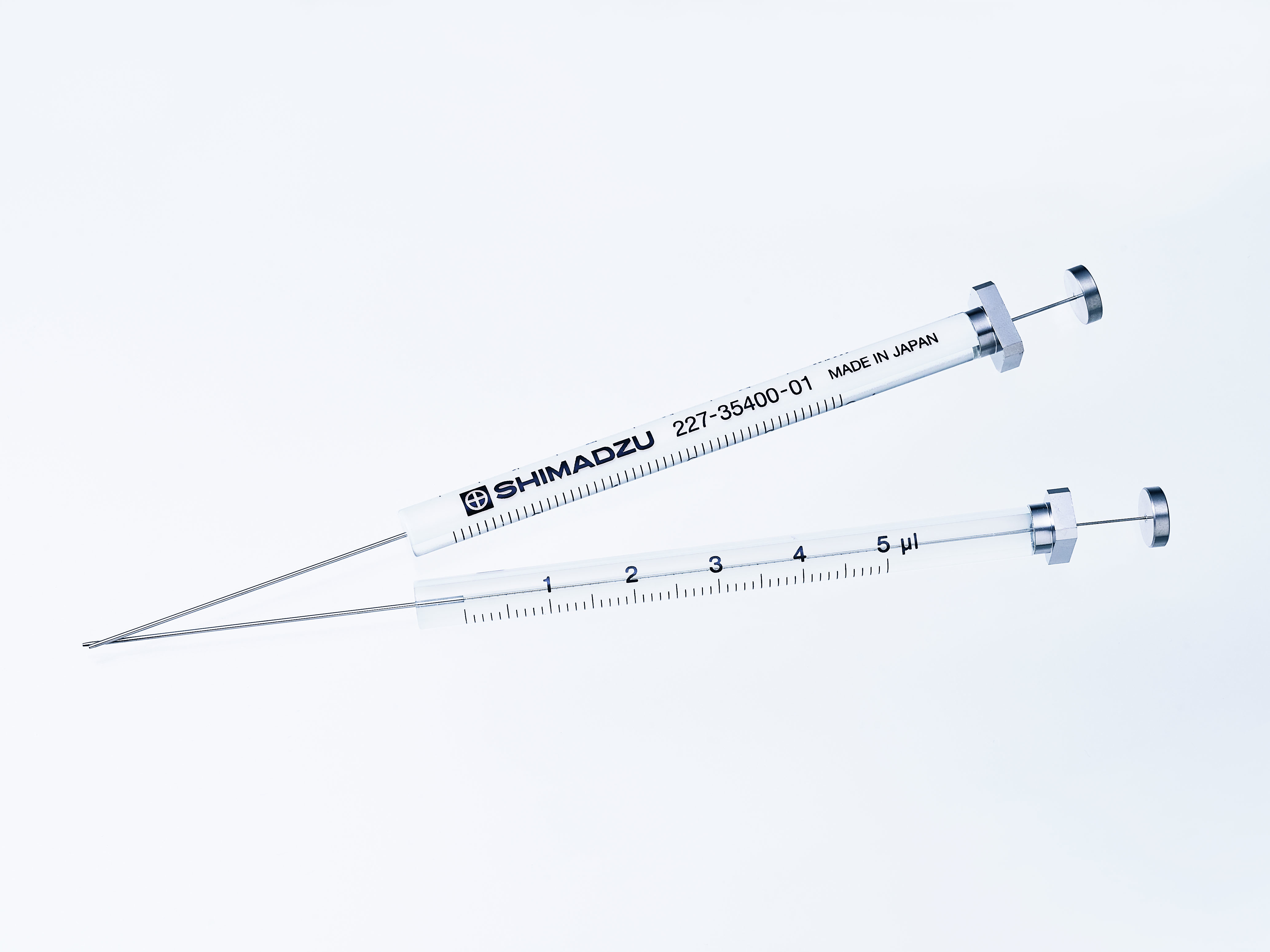

Xtra life micro-syringe, 5uL, Titanium alloy plunger
Part Number: 227-35401-01
Type: Fixed Needle Syringe
Needle Tip Style: Cone
PTFE Tipped Plunger: No
Needle Length (mm): 43
Needle Gauge: 23G
Needle OD (mm): 0.64
Needle ID (mm): 0.12
Usage: AOC-20/30
Syringe Volume: 5 μL
Needle Length (): 43
Lead Time: 3 - 5 weeks
Fixed needle syringe with super flexible titanium alloy plunger. They are resistant to bending and sliding friction for extended lifetime, even with water soluble samples. Plunger and barrel are machined for an exact fit, so they are not interchangeable with another syringe if either part is damaged.
| Syringe Volume | Min. Sample Volume |
Needle Length (mm) | Needle Gauge | Needle OD (mm) | Needle ID (mm) | Needle tip | P/N |
|---|---|---|---|---|---|---|---|
| 5 μL | 0.1 μL | 43 | 23 | 0.64 | 0.15 | Cone | 227-35401-01 |
| 10 μL | 0.2 μL | 43 | 23 | 0.64 | 0.15 | Cone | 227-35400-01 |
Anti-Corrosion - Xtra Life Headspace Syringe
In the analysis of Blood that has an added strong acid, corrosion of the Headspace needle causes not only deterioration of analysis accuracy but also risk of unexpected system downtime due to needle clogging.
The use of acid-resistant Xtra Life syringe reduces corrosion and enables long-term stable analysis
