SHIMSEN Styra SAX 100mg/1mL 100pcs

Part No.: 380-00858-06

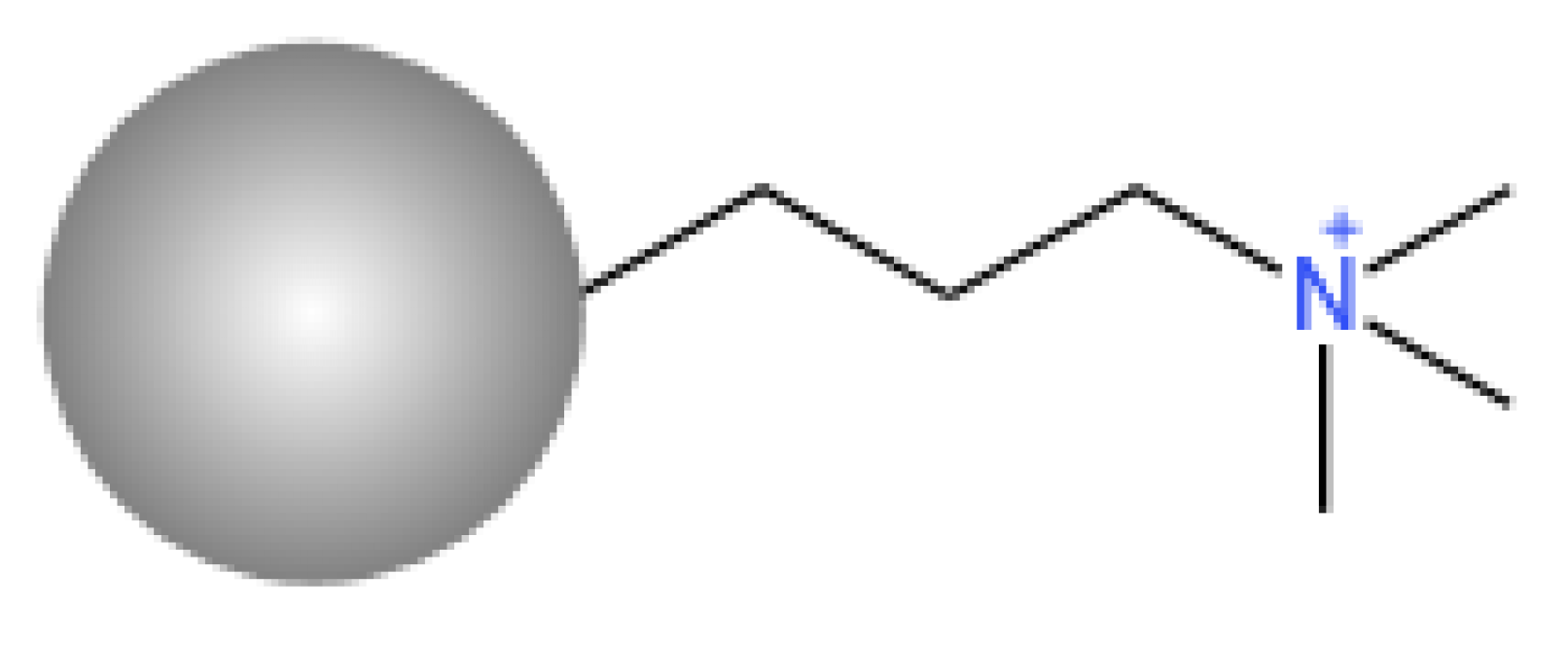

SHIMSEN Styra SAX is a trimethylaminopropyl-bonded silica cartridge and has strong anion exchange functionalities.It can provide selective retention for anionic organic compounds (such as compounds containing carboxyl groups and phenolic hydroxyl groups). The non-polar interactions are weak due to its short carbon chain on the quaternary ammonium group. Retention mechanism: Strong anion exchange interaction (primary), nonpolar interaction (secondary) Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Trimethylaminopropyl Endcapped: No Carbon load (C%): 7.5% pKa: Completely dissociated   Applications: SHIMSEN Styra SAX is generally used for the retention of weak anionic compounds containing carboxylic acid groups. Enrichment and purification of anionic organic compounds from aqueous samples, biological fluids and organic phases.   Product Number Specifications Pack size 380-00858-01 500 mg / 6 mL 30 380-00858-02 500 mg / 3 mL 50 380-00858-03 5 g / 20 mL 20 380-00858-04 2 g / 12 mL 20 380-00858-05 100 mg / 1 mL 100 380-00858-06 10 g / 60 mL 10 380-00858-07 1000mg / 6ml 30

Part No.: 380-00858-07

SHIMSEN Styra SAX is a trimethylaminopropyl-bonded silica cartridge and has strong anion exchange functionalities.It can provide selective retention for anionic organic compounds (such as compounds containing carboxyl groups and phenolic hydroxyl groups). The non-polar interactions are weak due to its short carbon chain on the quaternary ammonium group. Retention mechanism: Strong anion exchange interaction (primary), nonpolar interaction (secondary) Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Trimethylaminopropyl Endcapped: No Carbon load (C%): 7.5% pKa: Completely dissociated   Applications: SHIMSEN Styra SAX is generally used for the retention of weak anionic compounds containing carboxylic acid groups. Enrichment and purification of anionic organic compounds from aqueous samples, biological fluids and organic phases.   Product Number Specifications Pack size 380-00858-01 500 mg / 6 mL 30 380-00858-02 500 mg / 3 mL 50 380-00858-03 5 g / 20 mL 20 380-00858-04 2 g / 12 mL 20 380-00858-05 100 mg / 1 mL 100 380-00858-06 10 g / 60 mL 10 380-00858-07 1000mg / 6ml 30

Part No.: 380-00859-01

SHIMSEN Styra PSA is based on silica gel particles bonded with ethylenediamino-N-propyl which contain two different amino―the pKa of one is 10.1, and other is 10.9. It is similar to NH2 cartridge but has stronger ion exchange functionalities. At the same time, PSA can be used to extract metal ion due to the chelation with metal ion. Retention mechanism: Weak anion exchange, polar interaction, chelation Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Ethylenediamine-N-propyl Endcapped: No Carbon load (C%): 7% pKa: 10.1 and 10.9 (the pKa of its conjugated acid)   Application: It can be used to separate structural isomers; extract compounds with polar groups from lipid samples, and remove polar compounds (such as carbohydrates, pigments), organic acids, phenols, etc. in pesticide residue analysis.   Part Number Specification Pack Size 380-00859-01 500 mg / 6 mL 30 380-00859-02 500 mg / 3 mL 50 380-00859-03 5 g / 20 mL 20 380-00859-04 200 mg / 3 mL 50 380-00859-05 2 g / 12 mL 20 380-00859-06 1000 mg / 6 mL 30 380-00859-07 100 mg / 1 mL 100 380-00859-08 10 g / 60 mL 10

Part No.: 380-00859-02

SHIMSEN Styra PSA is based on silica gel particles bonded with ethylenediamino-N-propyl which contain two different amino―the pKa of one is 10.1, and other is 10.9. It is similar to NH2 cartridge but has stronger ion exchange functionalities. At the same time, PSA can be used to extract metal ion due to the chelation with metal ion. Retention mechanism: Weak anion exchange, polar interaction, chelation Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Ethylenediamine-N-propyl Endcapped: No Carbon load (C%): 7% pKa: 10.1 and 10.9 (the pKa of its conjugated acid)   Application: It can be used to separate structural isomers; extract compounds with polar groups from lipid samples, and remove polar compounds (such as carbohydrates, pigments), organic acids, phenols, etc. in pesticide residue analysis.   Part Number Specification Pack Size 380-00859-01 500 mg / 6 mL 30 380-00859-02 500 mg / 3 mL 50 380-00859-03 5 g / 20 mL 20 380-00859-04 200 mg / 3 mL 50 380-00859-05 2 g / 12 mL 20 380-00859-06 1000 mg / 6 mL 30 380-00859-07 100 mg / 1 mL 100 380-00859-08 10 g / 60 mL 10

Part No.: 380-00858-04

SHIMSEN Styra SAX is a trimethylaminopropyl-bonded silica cartridge and has strong anion exchange functionalities.It can provide selective retention for anionic organic compounds (such as compounds containing carboxyl groups and phenolic hydroxyl groups). The non-polar interactions are weak due to its short carbon chain on the quaternary ammonium group. Retention mechanism: Strong anion exchange interaction (primary), nonpolar interaction (secondary) Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Trimethylaminopropyl Endcapped: No Carbon load (C%): 7.5% pKa: Completely dissociated   Applications: SHIMSEN Styra SAX is generally used for the retention of weak anionic compounds containing carboxylic acid groups. Enrichment and purification of anionic organic compounds from aqueous samples, biological fluids and organic phases.   Product Number Specifications Pack size 380-00858-01 500 mg / 6 mL 30 380-00858-02 500 mg / 3 mL 50 380-00858-03 5 g / 20 mL 20 380-00858-04 2 g / 12 mL 20 380-00858-05 100 mg / 1 mL 100 380-00858-06 10 g / 60 mL 10 380-00858-07 1000mg / 6ml 30

Part No.: 380-00858-06

SHIMSEN Styra SAX is a trimethylaminopropyl-bonded silica cartridge and has strong anion exchange functionalities.It can provide selective retention for anionic organic compounds (such as compounds containing carboxyl groups and phenolic hydroxyl groups). The non-polar interactions are weak due to its short carbon chain on the quaternary ammonium group. Retention mechanism: Strong anion exchange interaction (primary), nonpolar interaction (secondary) Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Trimethylaminopropyl Endcapped: No Carbon load (C%): 7.5% pKa: Completely dissociated   Applications: SHIMSEN Styra SAX is generally used for the retention of weak anionic compounds containing carboxylic acid groups. Enrichment and purification of anionic organic compounds from aqueous samples, biological fluids and organic phases.   Product Number Specifications Pack size 380-00858-01 500 mg / 6 mL 30 380-00858-02 500 mg / 3 mL 50 380-00858-03 5 g / 20 mL 20 380-00858-04 2 g / 12 mL 20 380-00858-05 100 mg / 1 mL 100 380-00858-06 10 g / 60 mL 10 380-00858-07 1000mg / 6ml 30

Part No.: 380-00858-07

SHIMSEN Styra SAX is a trimethylaminopropyl-bonded silica cartridge and has strong anion exchange functionalities.It can provide selective retention for anionic organic compounds (such as compounds containing carboxyl groups and phenolic hydroxyl groups). The non-polar interactions are weak due to its short carbon chain on the quaternary ammonium group. Retention mechanism: Strong anion exchange interaction (primary), nonpolar interaction (secondary) Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Trimethylaminopropyl Endcapped: No Carbon load (C%): 7.5% pKa: Completely dissociated   Applications: SHIMSEN Styra SAX is generally used for the retention of weak anionic compounds containing carboxylic acid groups. Enrichment and purification of anionic organic compounds from aqueous samples, biological fluids and organic phases.   Product Number Specifications Pack size 380-00858-01 500 mg / 6 mL 30 380-00858-02 500 mg / 3 mL 50 380-00858-03 5 g / 20 mL 20 380-00858-04 2 g / 12 mL 20 380-00858-05 100 mg / 1 mL 100 380-00858-06 10 g / 60 mL 10 380-00858-07 1000mg / 6ml 30

Part No.: 380-00859-01

SHIMSEN Styra PSA is based on silica gel particles bonded with ethylenediamino-N-propyl which contain two different amino―the pKa of one is 10.1, and other is 10.9. It is similar to NH2 cartridge but has stronger ion exchange functionalities. At the same time, PSA can be used to extract metal ion due to the chelation with metal ion. Retention mechanism: Weak anion exchange, polar interaction, chelation Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Ethylenediamine-N-propyl Endcapped: No Carbon load (C%): 7% pKa: 10.1 and 10.9 (the pKa of its conjugated acid)   Application: It can be used to separate structural isomers; extract compounds with polar groups from lipid samples, and remove polar compounds (such as carbohydrates, pigments), organic acids, phenols, etc. in pesticide residue analysis.   Part Number Specification Pack Size 380-00859-01 500 mg / 6 mL 30 380-00859-02 500 mg / 3 mL 50 380-00859-03 5 g / 20 mL 20 380-00859-04 200 mg / 3 mL 50 380-00859-05 2 g / 12 mL 20 380-00859-06 1000 mg / 6 mL 30 380-00859-07 100 mg / 1 mL 100 380-00859-08 10 g / 60 mL 10

Part No.: 380-00859-02

SHIMSEN Styra PSA is based on silica gel particles bonded with ethylenediamino-N-propyl which contain two different amino―the pKa of one is 10.1, and other is 10.9. It is similar to NH2 cartridge but has stronger ion exchange functionalities. At the same time, PSA can be used to extract metal ion due to the chelation with metal ion. Retention mechanism: Weak anion exchange, polar interaction, chelation Matrix: Particle size 50 μm, pore size 60 Å Spherical silica particles with a specific surface area of 500 m2/g Function groups: Ethylenediamine-N-propyl Endcapped: No Carbon load (C%): 7% pKa: 10.1 and 10.9 (the pKa of its conjugated acid)   Application: It can be used to separate structural isomers; extract compounds with polar groups from lipid samples, and remove polar compounds (such as carbohydrates, pigments), organic acids, phenols, etc. in pesticide residue analysis.   Part Number Specification Pack Size 380-00859-01 500 mg / 6 mL 30 380-00859-02 500 mg / 3 mL 50 380-00859-03 5 g / 20 mL 20 380-00859-04 200 mg / 3 mL 50 380-00859-05 2 g / 12 mL 20 380-00859-06 1000 mg / 6 mL 30 380-00859-07 100 mg / 1 mL 100 380-00859-08 10 g / 60 mL 10
